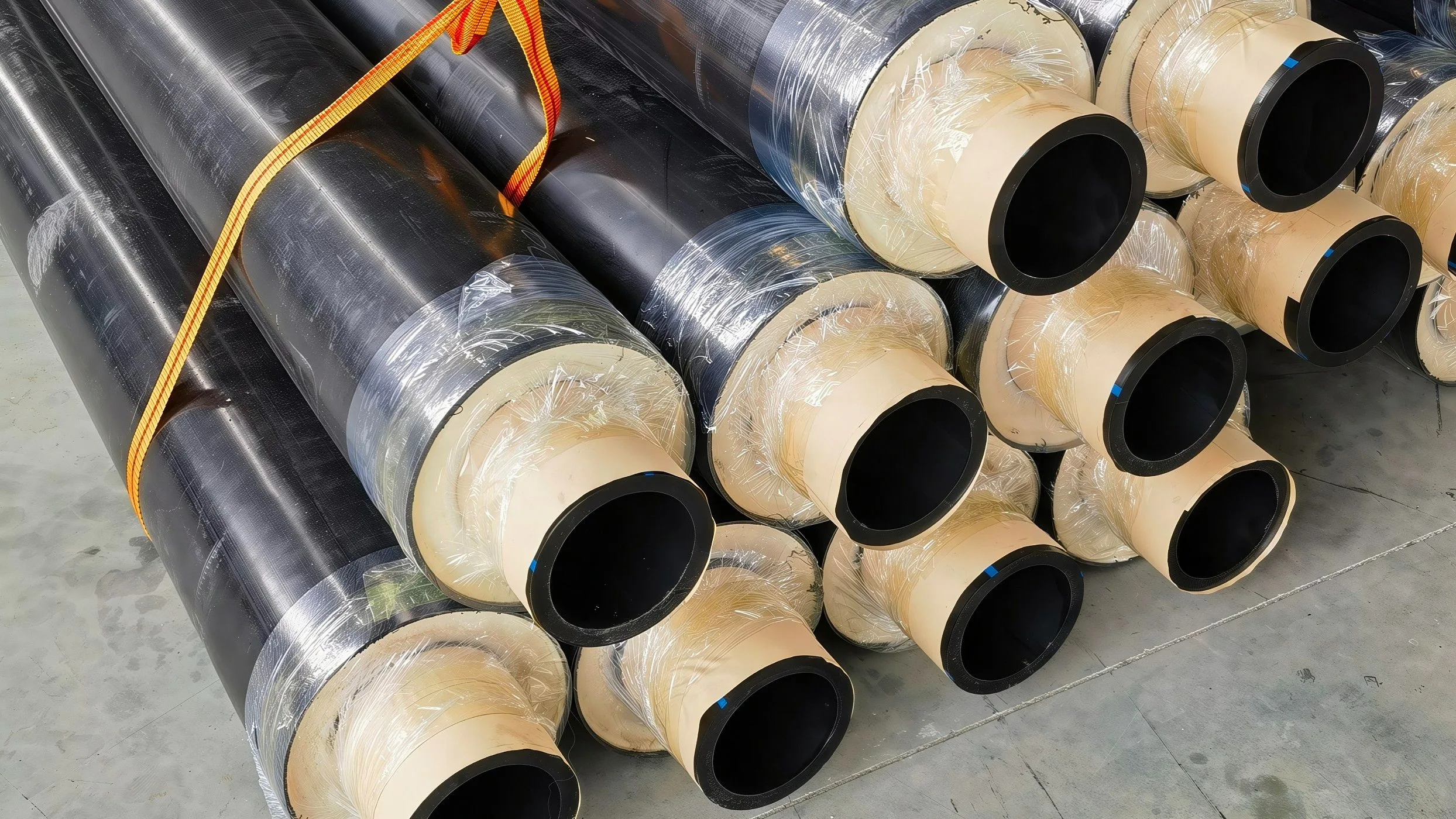

Product Overview
Designed for district heating, cooling, hot water, and heat pump pipeline systems with operating temperatures up to 80°C.

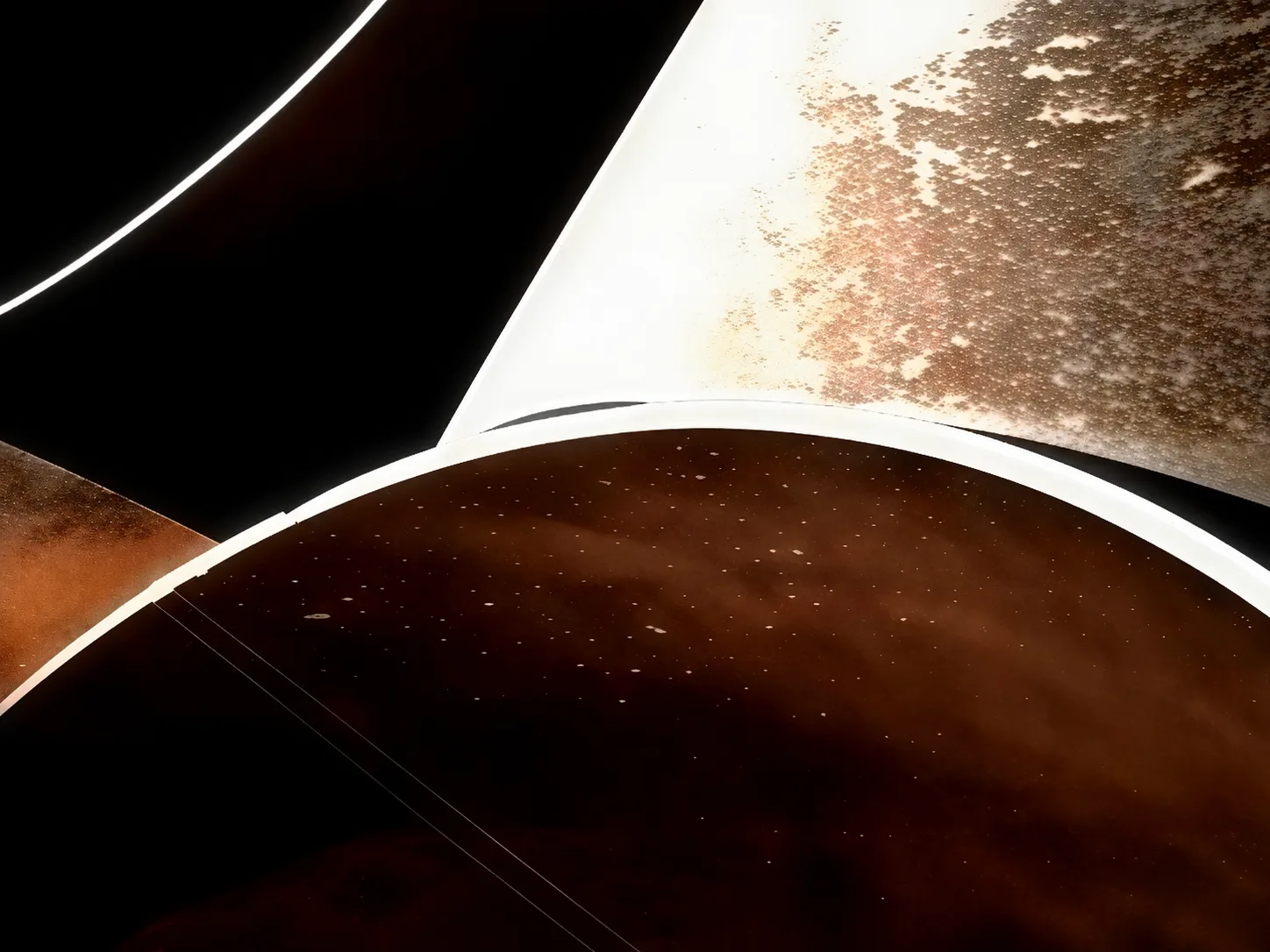

Corrosion Resistance & Long Service Life

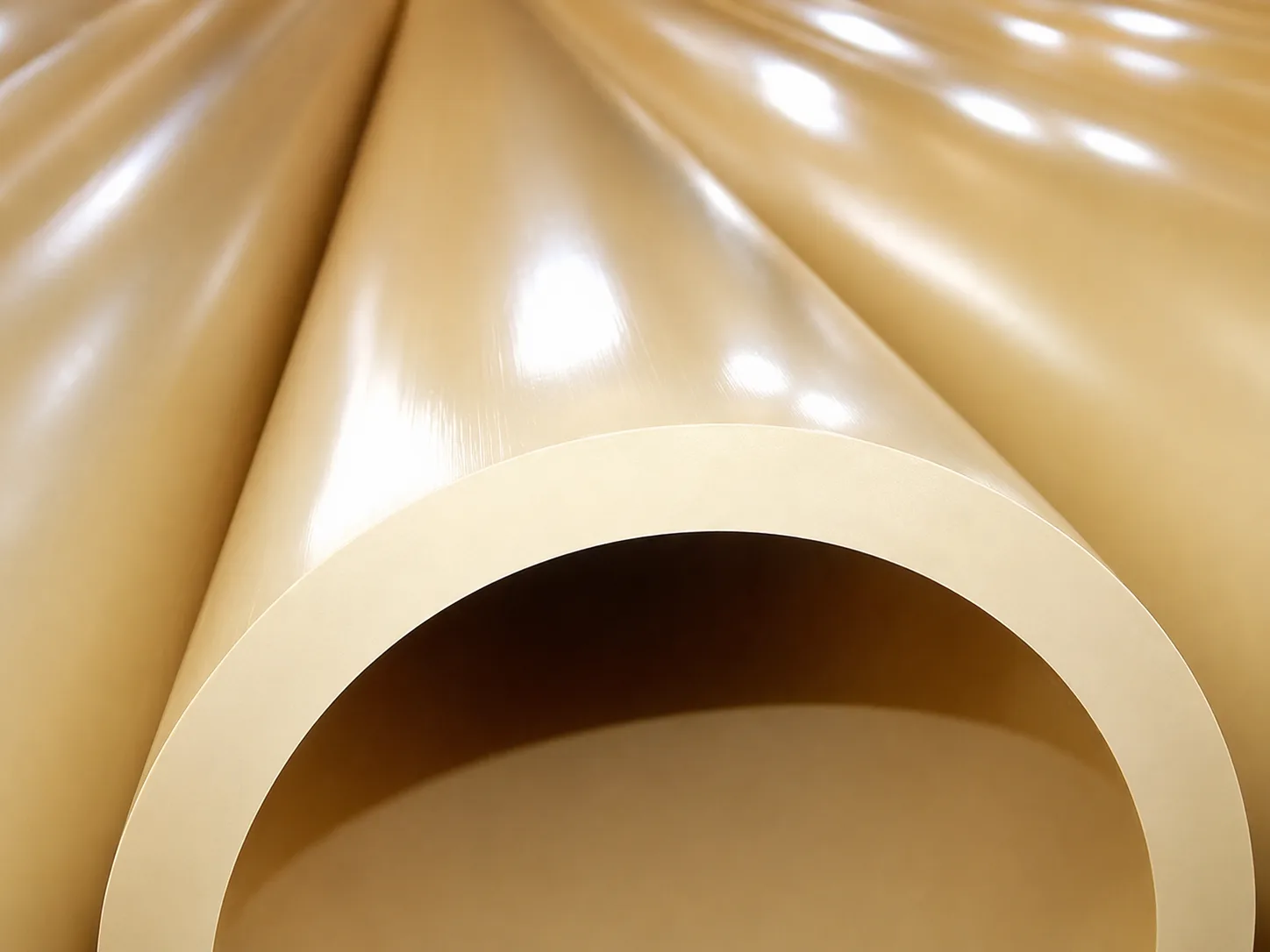

PERT-II pipes offer excellent corrosion resistance without additional anti-corrosion treatment, helping extend service life and reduce long-term maintenance costs.
Smooth Inner Wall & High Flow Efficiency
The smooth inner surface reduces friction resistance and prevents scaling, improving water transmission efficiency and ensuring more stable pipeline performance.
Cost-Effective & Easy Installation
Advanced polymer material technology makes small-diameter PERT-II pipes (below DN200) more economical than traditional seamless steel pipes, while the simple installation process reduces labor requirements and construction costs.

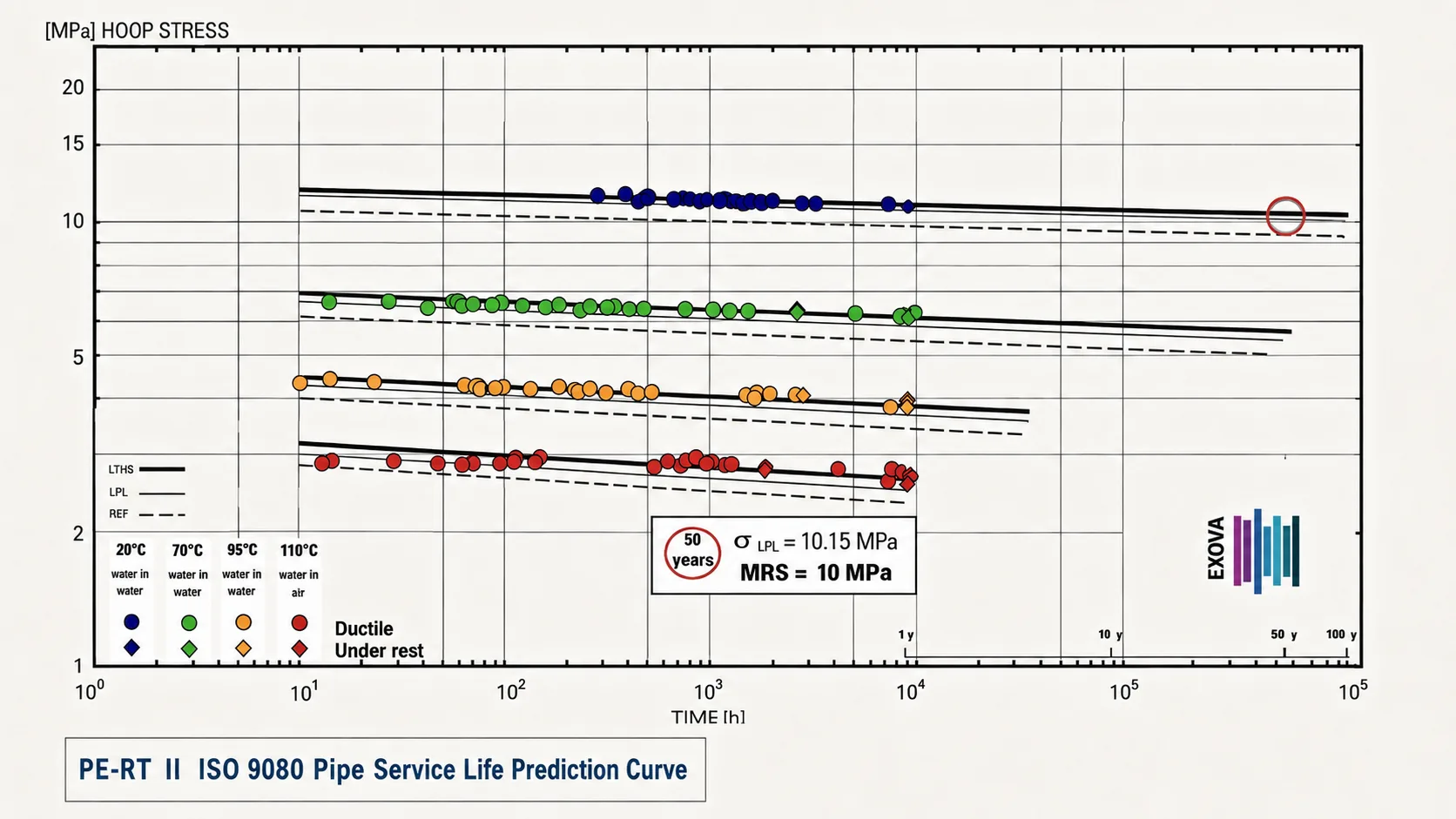

50+ Years Service Life
80°C Long-Term Operating Temperature
Underfloor Heating
≤50°C 1.0MPa
Radiator Heating
≤80°C 0.8MPa
Domestic Hot Water / Hot Spring Water
≤70°C 0.7MPa

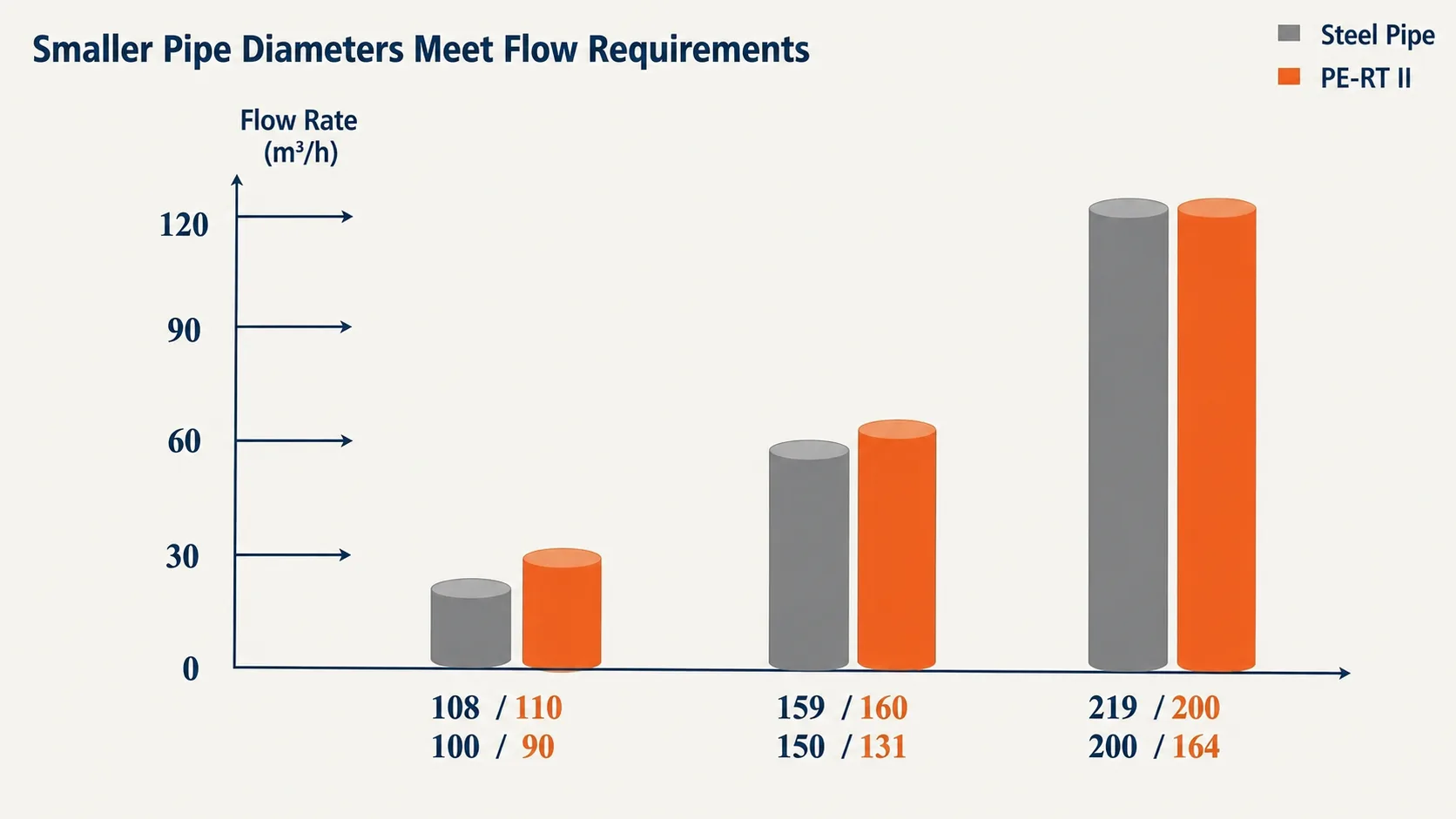

1.25⁺ ×Pipeline Flow Capacity
VS
2.0⁺ × Pipeline Construction Efficiency

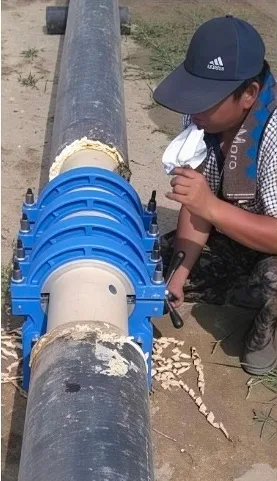

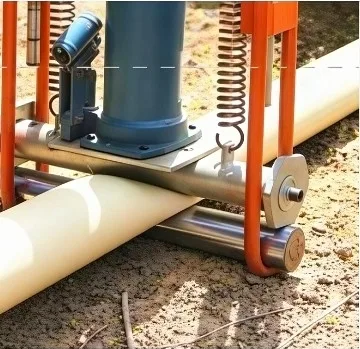

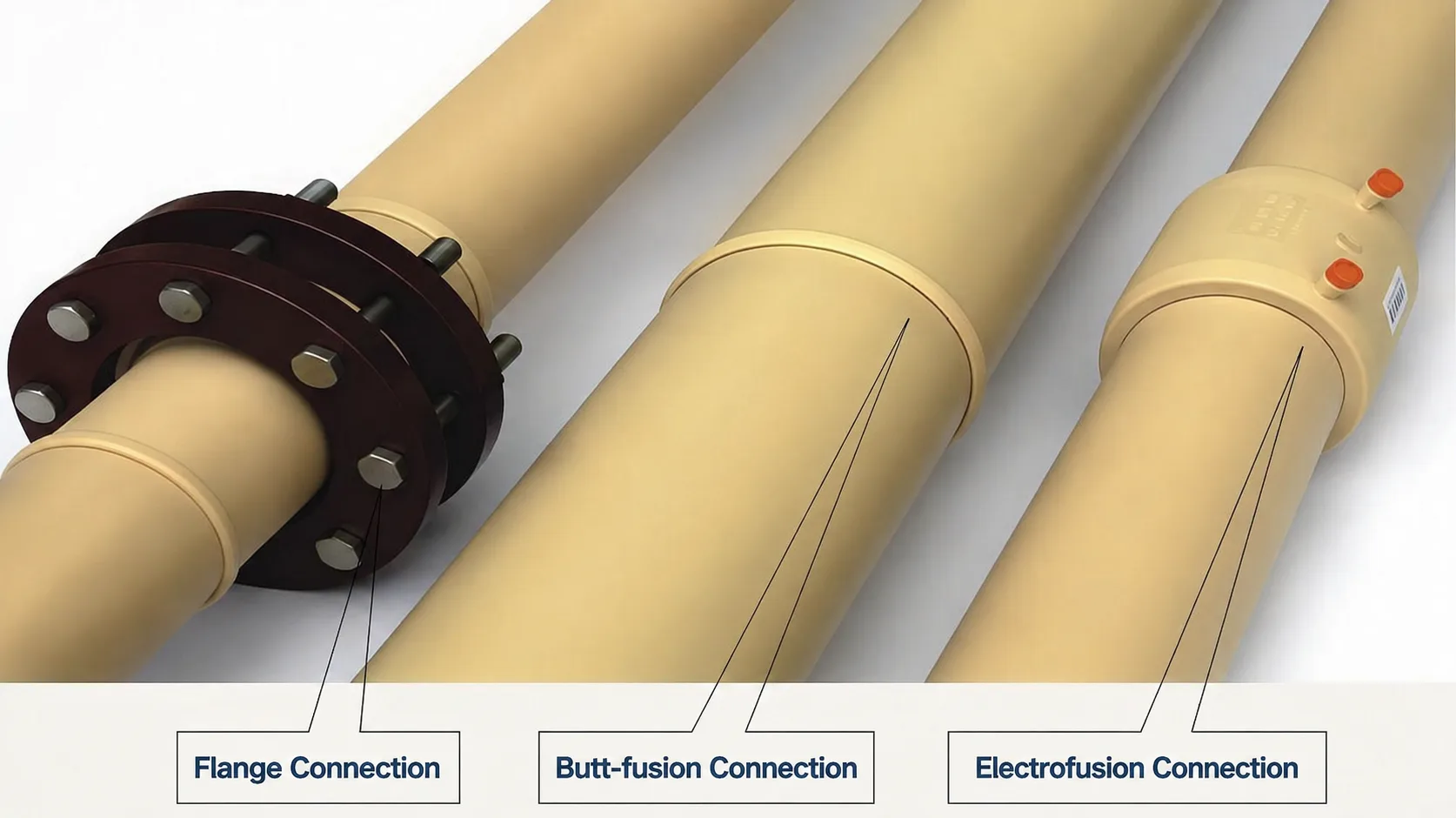

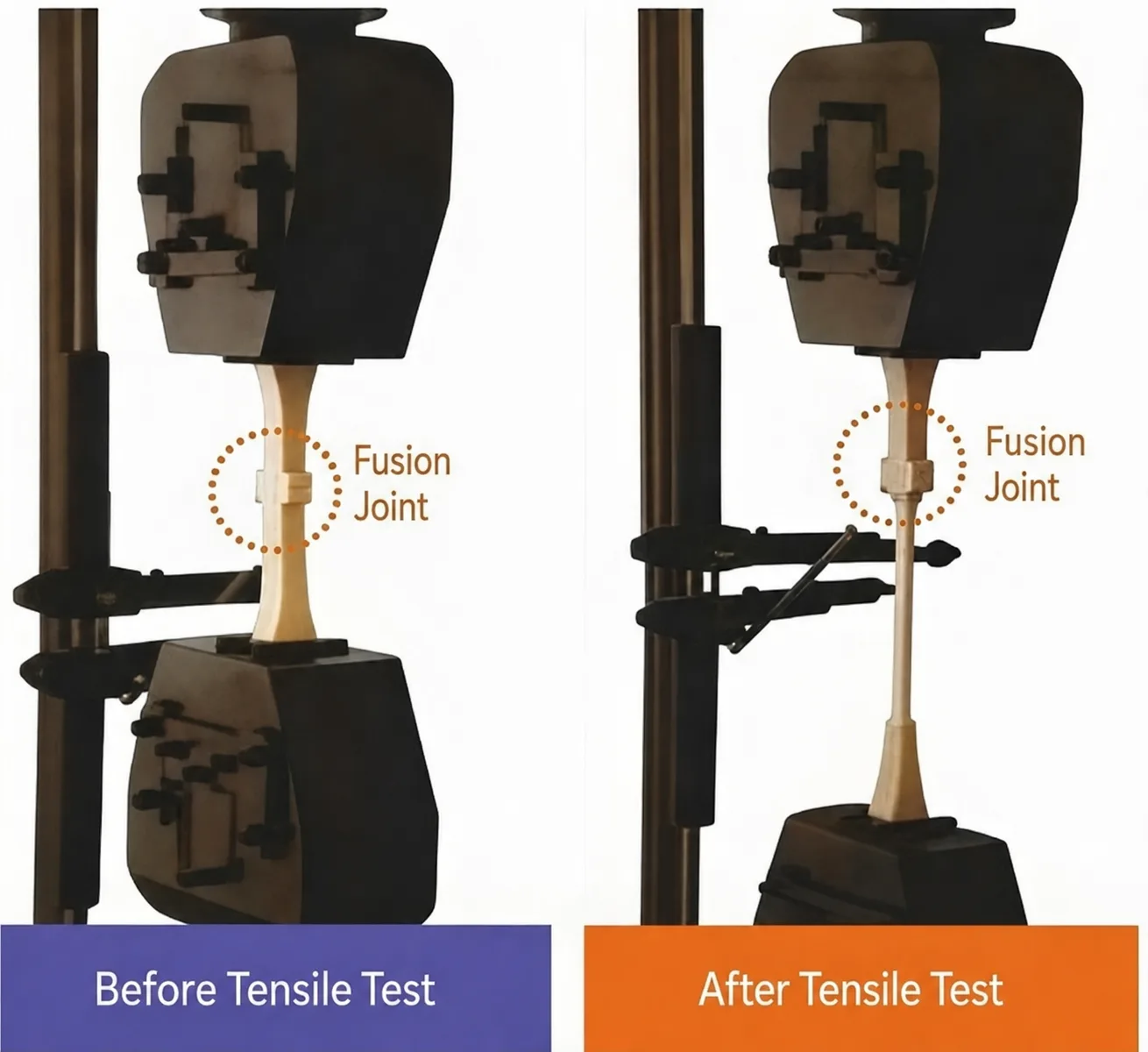

Butt-fusion Connection
Provides a continuous fused joint for straight pipeline installation and long buried sections.

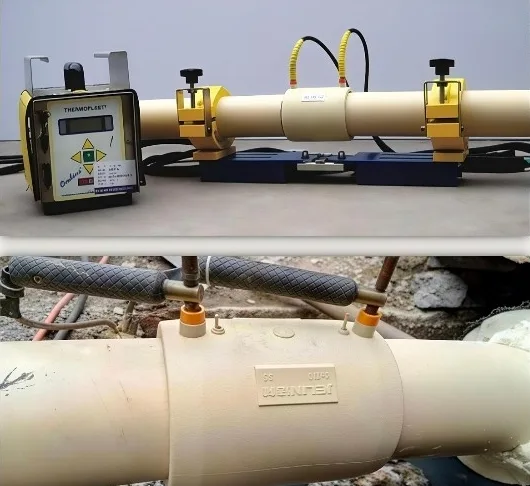

Electrofusion Connection
Useful for confined spaces, repairs, branches, and locations where controlled electrofusion is preferred.

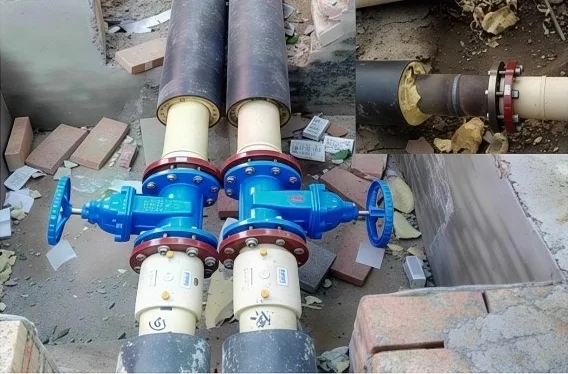

Flange Connection
Supports connection to valves, pumps, equipment, and dissimilar piping systems.
Butt-fusion Connection
Electrofusion Connection
Flange Connection

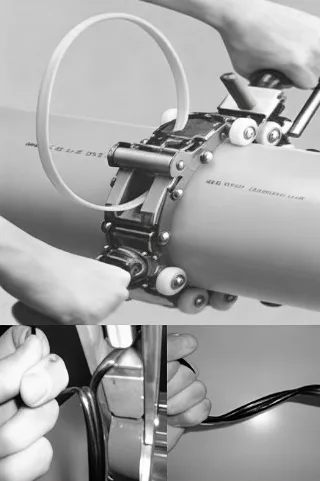

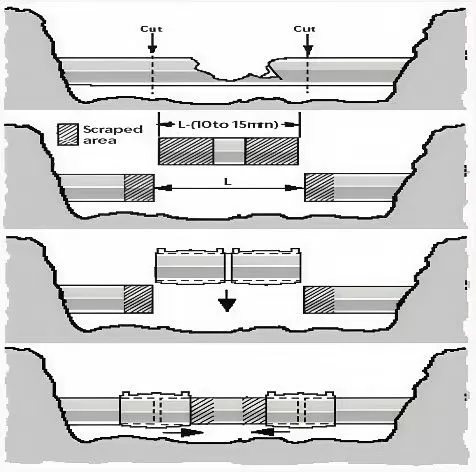

Compression Repair Technology

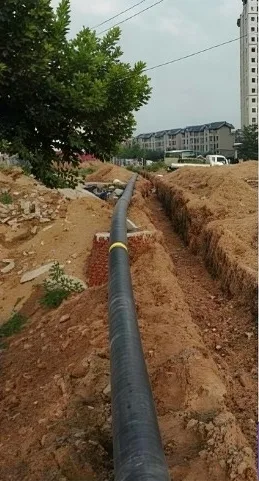

Compensation-Free Direct-Buried Installation
F axial < F friction
F axial < F yield
F axial < F shear
| Nominal Pipe Outside Diameter (mm) | Axial Force of Pipe (N) | Soil Friction Force per Meter (N/m) | Pipe Yield Force (N) | Shear Force per Meter (N/m) |
| 160 | 9.1 × 10³ | 5.3 × 10³ | 1.0 × 10⁵ | 4.5 × 10⁴ |
| 200 | 1.4 × 10⁴ | 5.9 × 10³ | 1.6 × 10⁵ | 5.6 × 10⁴ |
| 225 | 1.8 × 10⁴ | 6.7 × 10³ | 2.0 × 10⁵ | 6.3 × 10⁴ |
| 250 | 2.2 × 10⁴ | 7.7 × 10³ | 2.4 × 10⁵ | 7.0 × 10⁴ |
| 315 | 3.5 × 10⁴ | 8.8 × 10³ | 3.9 × 10⁵ | 8.9 × 10⁴ |
A 6-meter-long PE-RT II pipe section remains stable after direct burial, with no displacement, yielding, or layer separation under normal operating conditions.

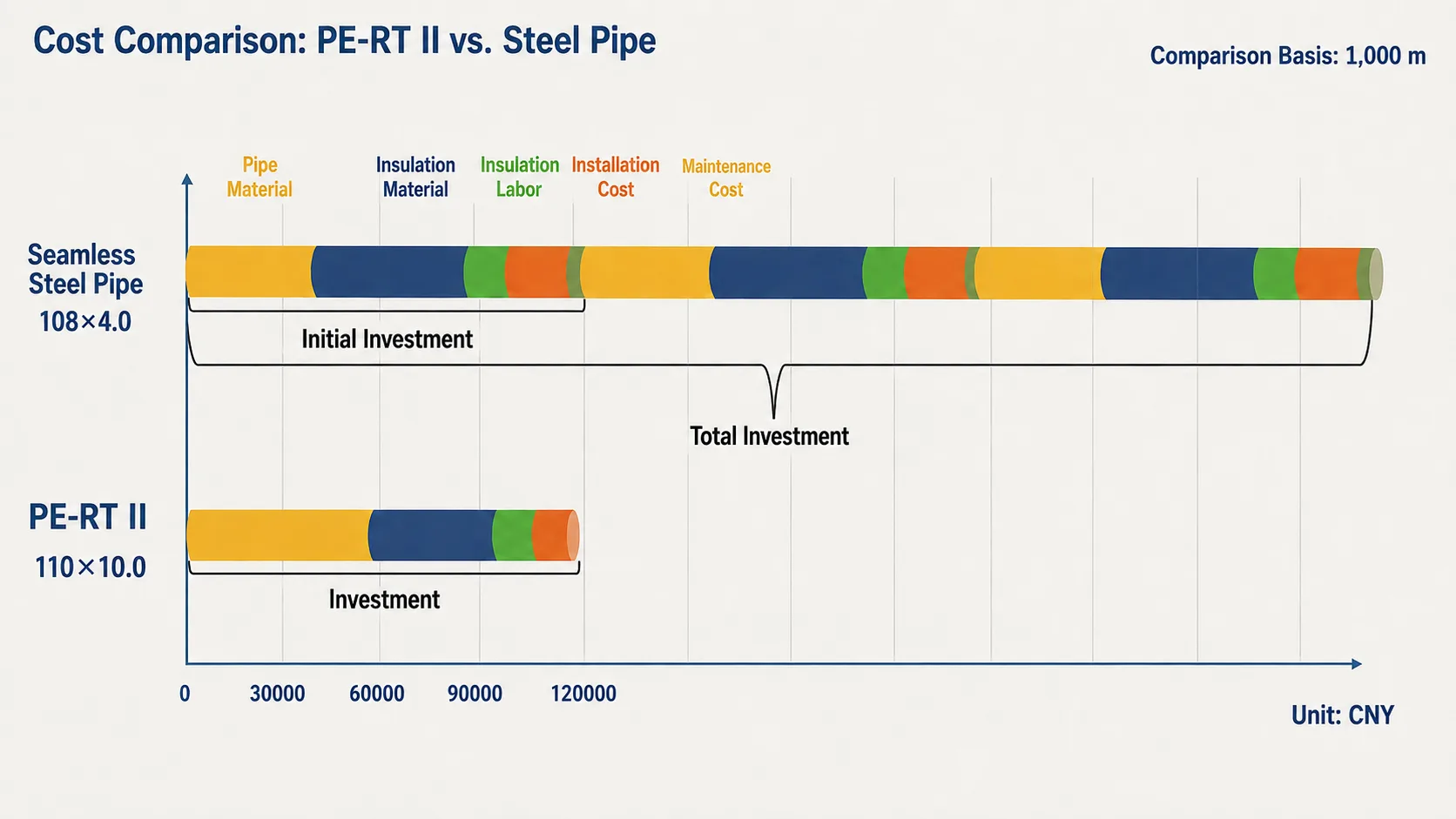

Over 70% Overall Cost Savings

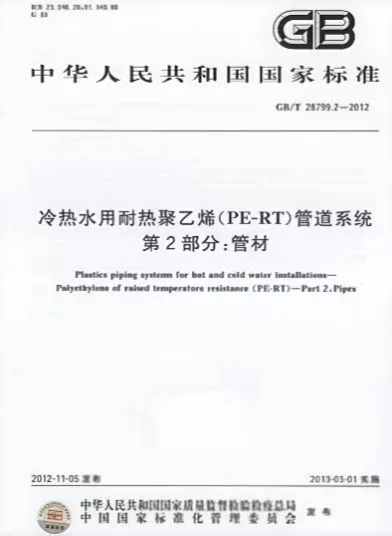

Compliance Standards & Certifications

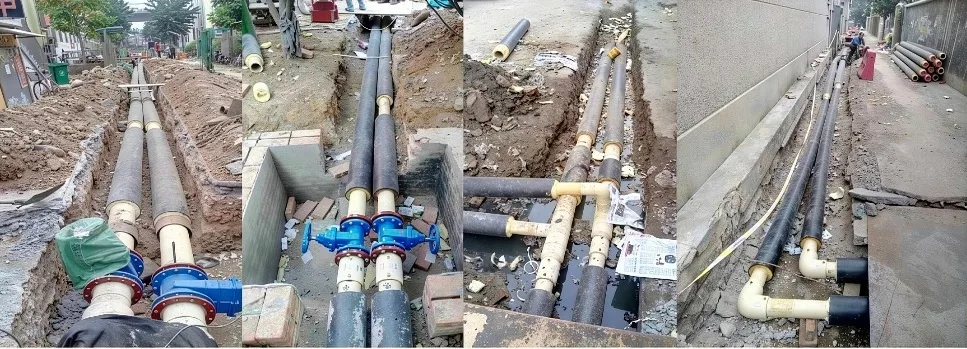

Typical Project Case: Jinan, Shandong
Overcoming Tight Construction Schedules & Complex Site Conditions
Project Challenge
Tight construction deadlines and complex site conditions required a reliable and efficient pipeline solution.
Product Specifications
DN63–DN315; Total Length: Over 13,000 m; Operating Parameters: 0.6 MPa, 60°C
Solution
WANFU PE-RT II direct-buried insulated pipes provided fast installation, stable performance, and excellent construction efficiency.
Result
The construction was successfully completed within just over one month, ensuring timely heating supply and gaining recognition from both the client and construction team.
Not Sure Which Product Fits Your Project?
Send us your pipe diameter, operating temperature, insulation thickness, density requirement, support type, and drawings. Our team will help recommend the right insulation product and quotation plan.
