Product Overview
Explore our core polyurethane insulation solutions for industrial and project applications.
Polyurethane pipe shells are rigid foam insulation sections designed for thermal insulation, cold insulation, anti-condensation, and energy-saving pipeline projects.
They are widely used for heating pipes, chilled water pipes, refrigeration pipelines, HVAC systems, industrial process pipes, cold storage systems, and building service pipelines.

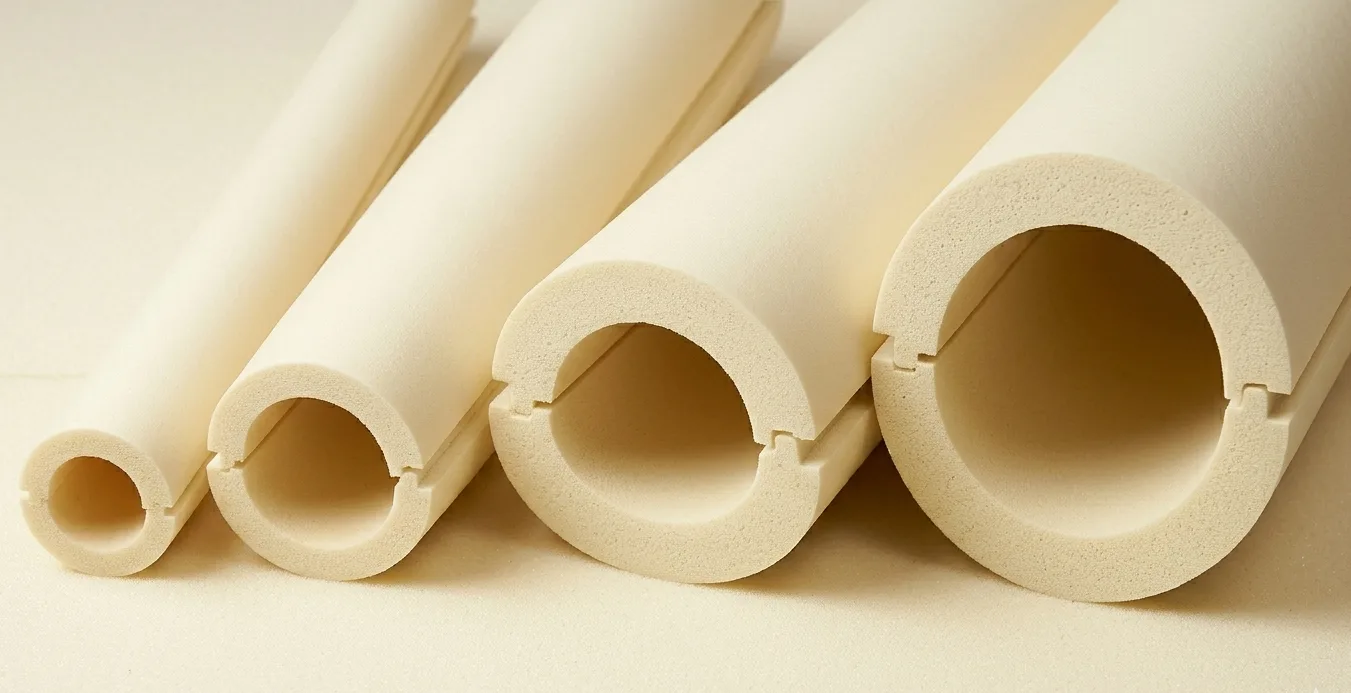

WanFu polyurethane pipe shells can be supplied in two-piece, three-piece, or multi-segment structures according to pipe diameter and insulation thickness. The segmented structure helps improve installation accuracy, reduce gaps, and provide stable insulation around the pipe surface.

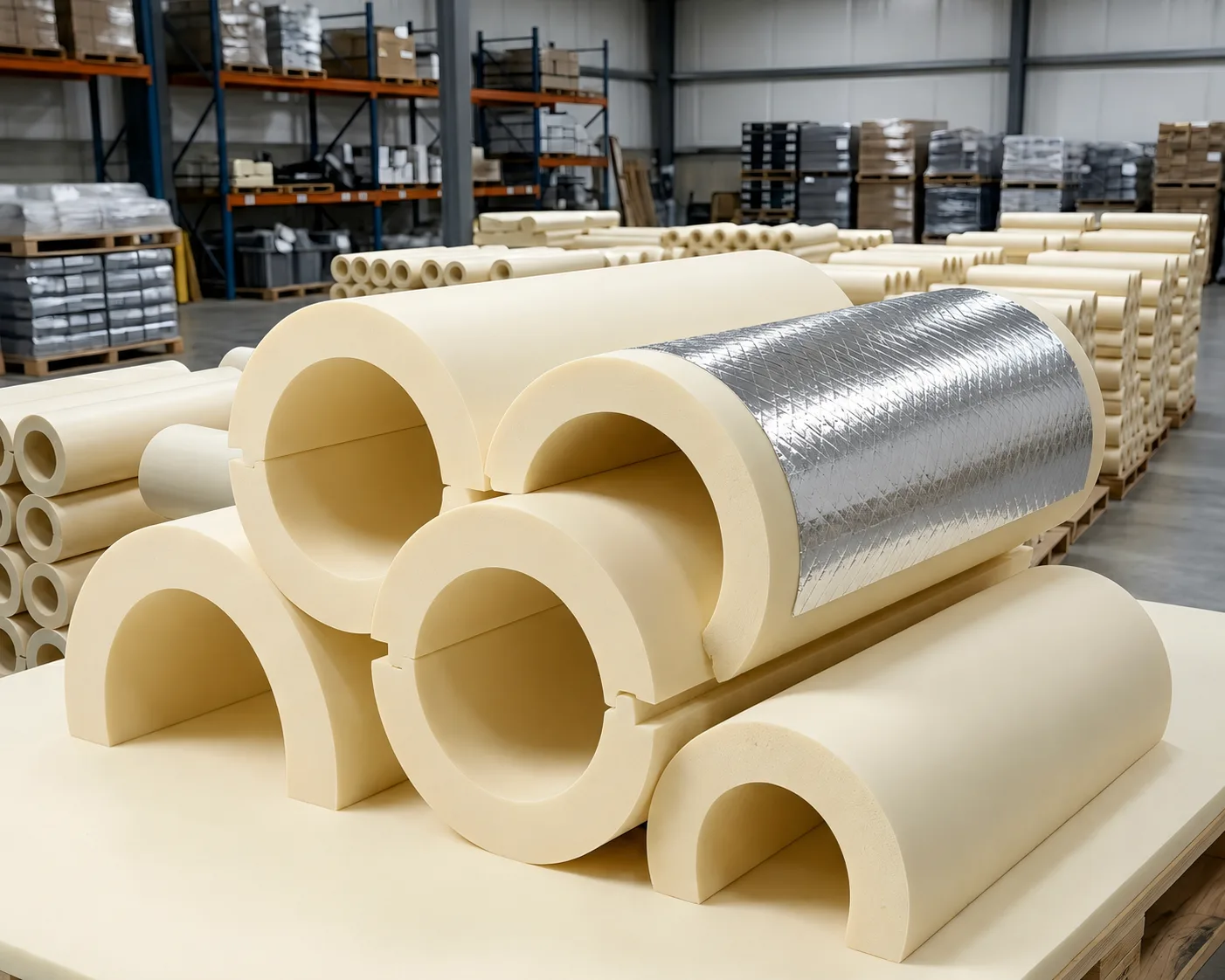

The pipe shells can be supplied as bare PU foam, aluminium foil facing, ALU-clad covering, mesh-ALU facing, or customized surface protection according to project requirements.
Key Features
Low Thermal Conductivity
Rigid polyurethane foam helps reduce heat loss in hot pipelines and cold loss in chilled water or refrigeration systems.
Closed-cell Foam Structure
The closed-cell structure helps improve moisture resistance and reduce condensation risk in cold insulation applications.
Wide Size Range
WanFu supplies polyurethane pipe shells from DN15 to DN1400, covering small HVAC pipes, medium industrial pipelines, and large-diameter project pipelines.
Custom Insulation Thickness
Standard insulation thickness ranges from 20mm to 250mm depending on pipe diameter. Custom thickness can be produced according to project drawings or thermal calculation requirements.
Optional Surface Facing
Available options include bare PU foam, aluminium foil facing, ALU-clad covering, mesh-ALU facing, or customized protective layers.
Matching Fittings
WanFu can supply matching tee sections, 45° elbows, 90° elbows, reducers, and customized insulation fittings.
Technical Specifications and Standard Size Range
Technical Specifications
| Item | Unit | Value |
| Density | kg/m³ | 45-55 |
| Thermal Conductivity | W/m·K | ≤0.024 |
| Compressive Strength | kPa | ≥180 |
| Water Absorption | % | ≤3 |
| Tensile Strength | kPa | 321 |
| Water Vapor Permeability Coefficient | ng/(Pa·m·s) | ≤6.5 |
| Closed Cell Rate | % | ≥90 |
| Oxygen Index | % | ≥30 |
| PH Value | — | 7-11.7 |
| Nominal Diameter | A Series Pipe OD mm | B Series Pipe OD mm | Insulation Thickness mm | Standard Length mm |
| DN15 | 21.3 | 18 | 20-150 | 1000 |
| DN20 | 26.9 | 25 | 20-150 | 1000 |
| DN25 | 33.7 | 32 | 20-150 | 1000 |
| DN32 | 42.4 | 38 | 20-150 | 1000 |
| DN40 | 48.3 | 45 | 20-150 | 1000 |
| DN50 | 60.3 | 57 | 20-150 | 1000 |
| DN65 | 76.1 | 76 | 20-150 | 1000 |
| DN80 | 88.9 | 89 | 20-150 | 1000 |
| DN100 | 114.3 | 108 | 20-150 | 1000 |
| DN125 | 139.7 | 133 | 20-150 | 1000 |
| DN150 | 168.3 | 159 | 20-150 | 1000 |
| DN200 | 219.1 | 219 | 25-150 | 1000 |
| DN250 | 273 | 273 | 25-200 | 1000 |
| DN300 | 323.9 | 325 | 25-200 | 1000 |
| DN350 | 355.6 | 377 | 25-200 | 1000 |
| DN400 | 406.4 | 426 | 25-200 | 1000 |
| DN450 | 457 | 480 | 25-200 | 1000 |
| DN500 | 508 | 530 | 25-200 | 1000 |
| DN600 | 610 | 630 | 30-250 | 1000 |
| DN700 | 711 | 720 | 30-250 | 1000 |
| DN800 | 813 | 820 | 30-250 | 1000 |
| DN900 | 914 | 920 | 30-250 | 1000 |
| DN1000 | 1016 | 1020 | 30-250 | 1000 |
| DN1100 | 1118 | 1120 | 30-250 | 1000 |
| DN1200 | 1219 | 1220 | 30-250 | 1000 |
| DN1300 | 1321 | 1320 | 30-250 | 1000 |
| DN1400 | 1422 | 1420 | 30-250 | 1000 |

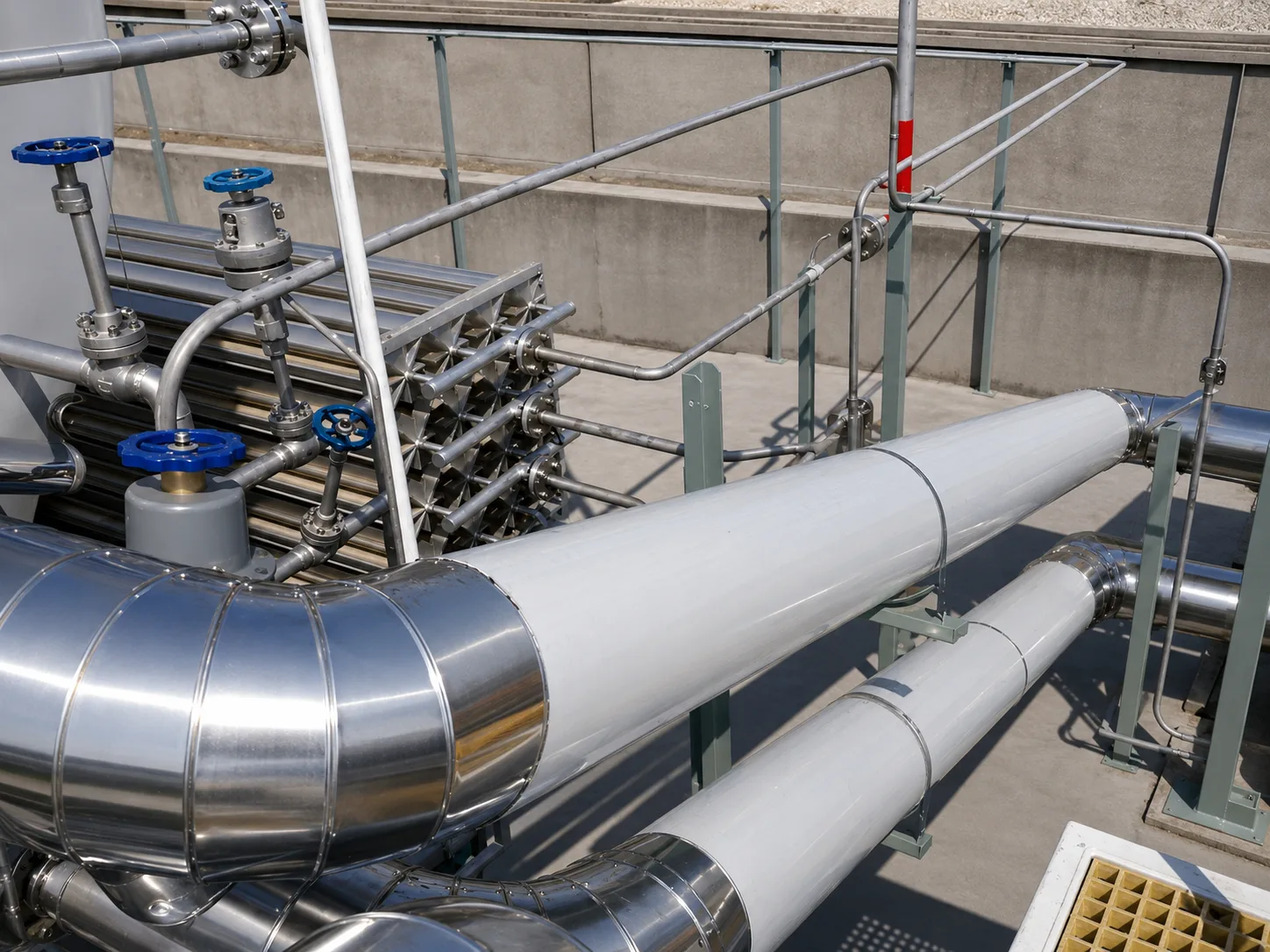

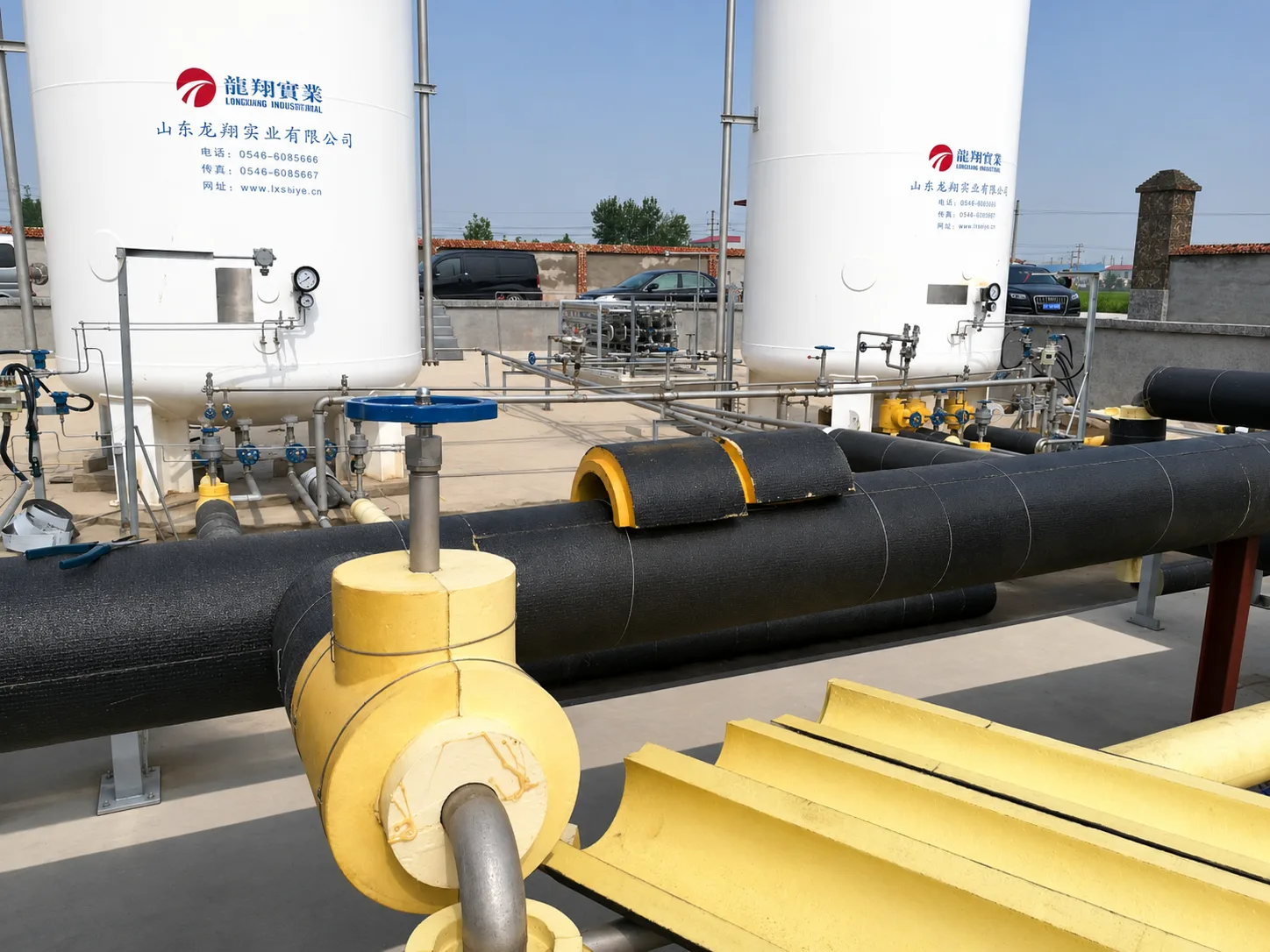

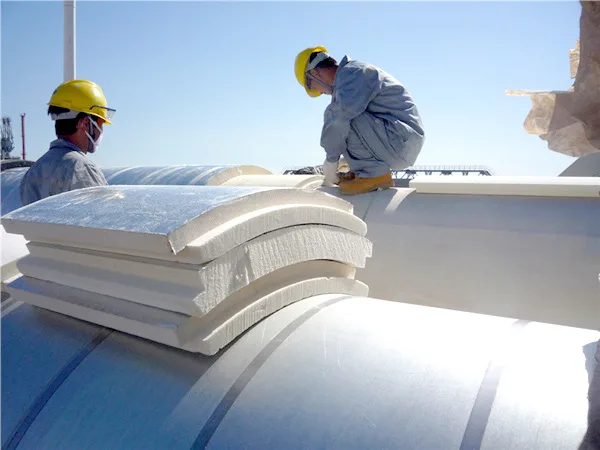

Applications
Surface Options
Bare PU Foam
Suitable for indoor pipe insulation or projects where an additional protective jacket will be installed on site.

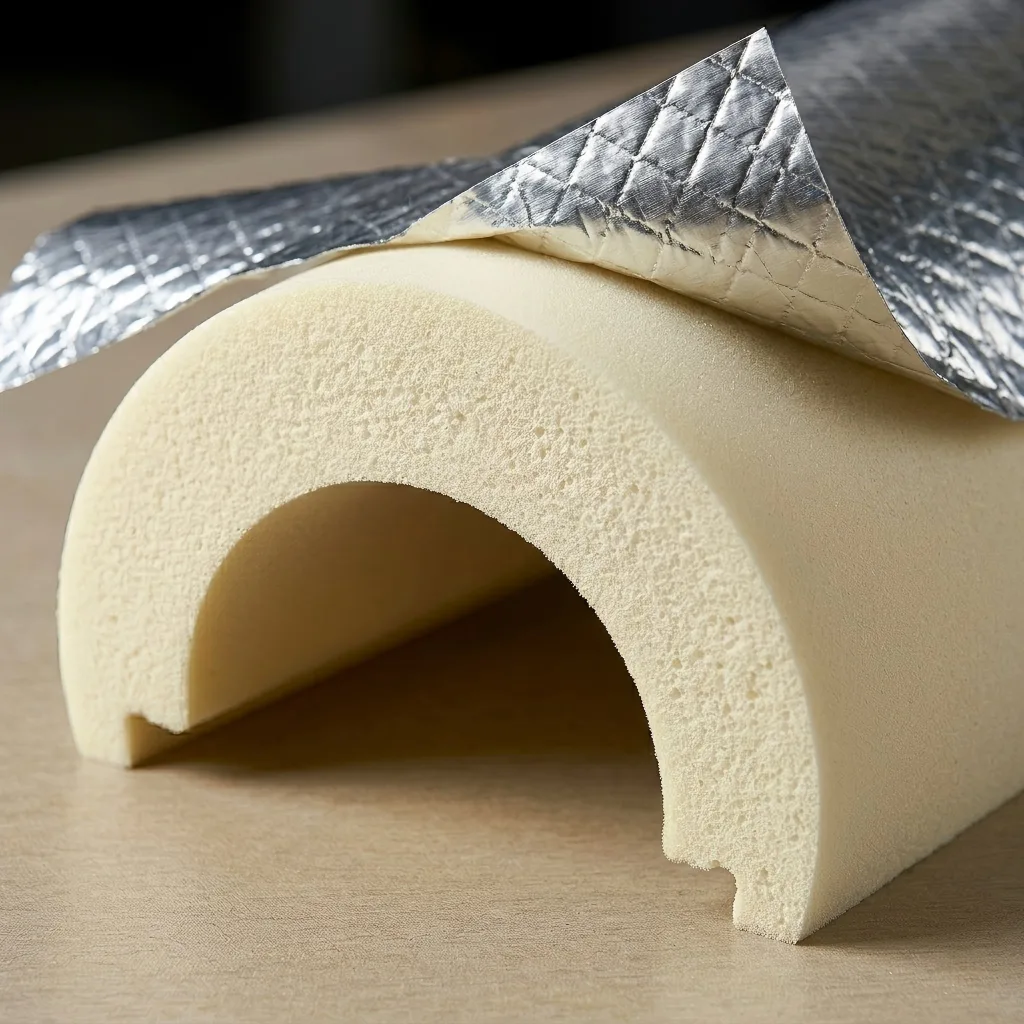

Aluminium Foil Facing
Helps improve vapor barrier performance and provides a clean appearance for HVAC and cold insulation applications.
ALU-clad Covering
Suitable for projects requiring stronger surface protection and improved durability.
Mesh-ALU Facing
Suitable for refrigeration, HVAC, and industrial pipe insulation systems requiring additional reinforcement.
Matching Insulation Fittings
Tee insulation sections
Customized tee sections for branchpipeline insulation continuity.
45° elbow insulation sections
Pre-shaped insulation for angled pipeline
routing and site installation.

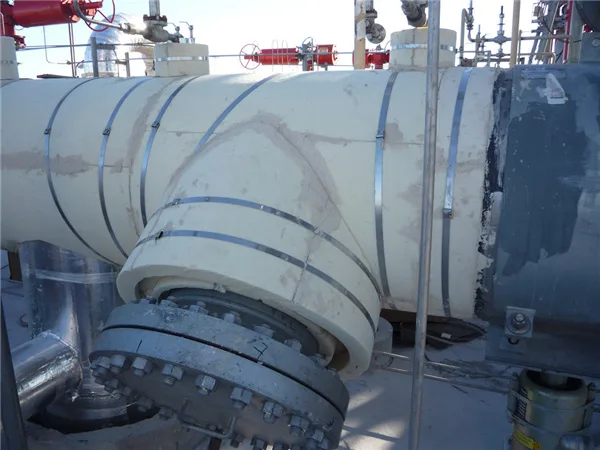

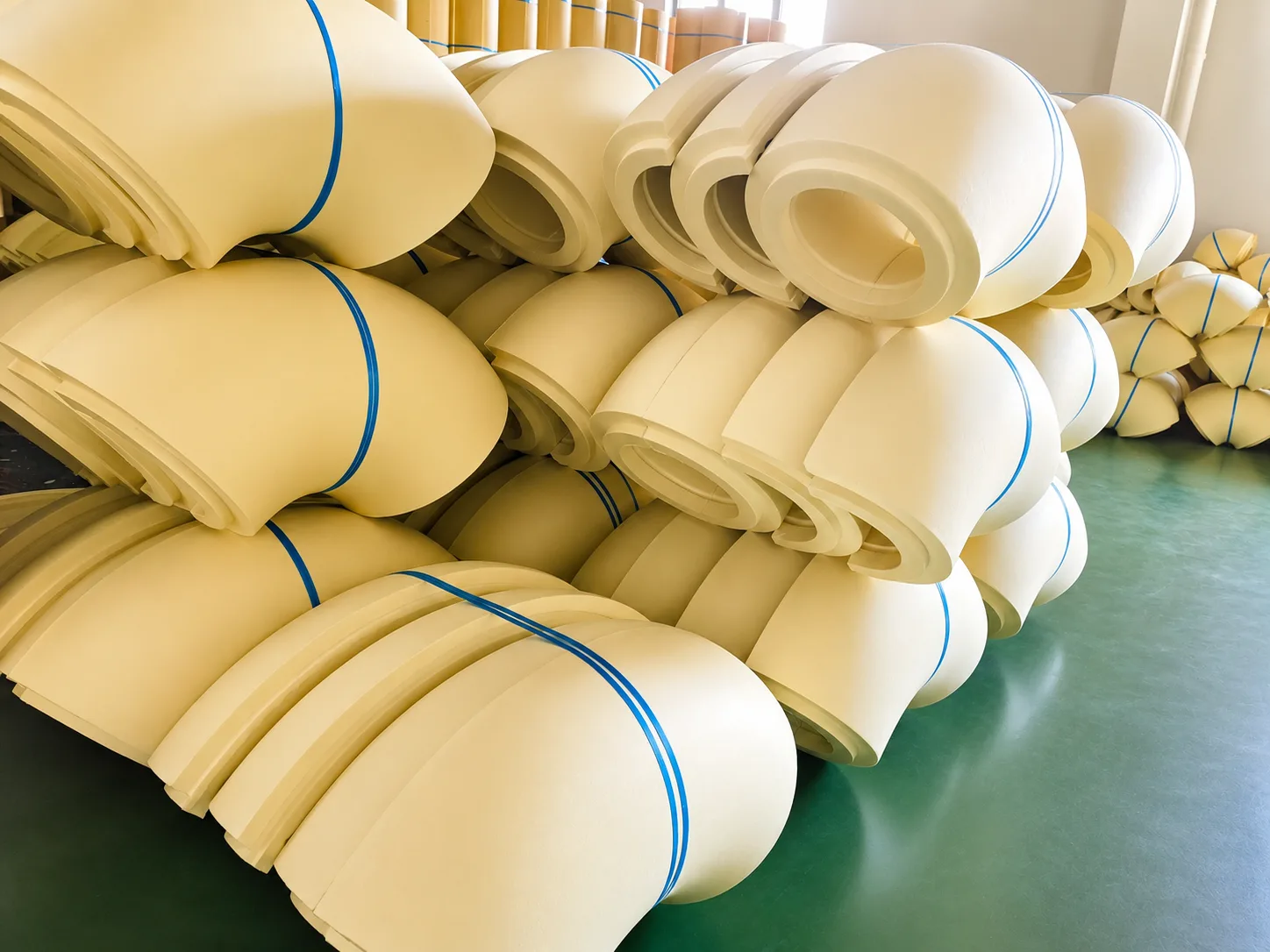

90° elbow insulation sections
Matched elbow insulation sections for
standard pipe bends.
Reducer insulation sections
Insulation fittings for pipe diameter
transition areas.
Customized shaped insulation parts
Produced based on drawings, density,thickness, and surface facing needs.
Not Sure Which Product Fits Your Project?
Send us your pipe diameter, operating temperature, insulation thickness, density requirement, support type, and drawings. Our team will help recommend the right insulation product and quotation plan.
