Product Overview
Explore our core polyurethane insulation solutions for industrial and project applications.

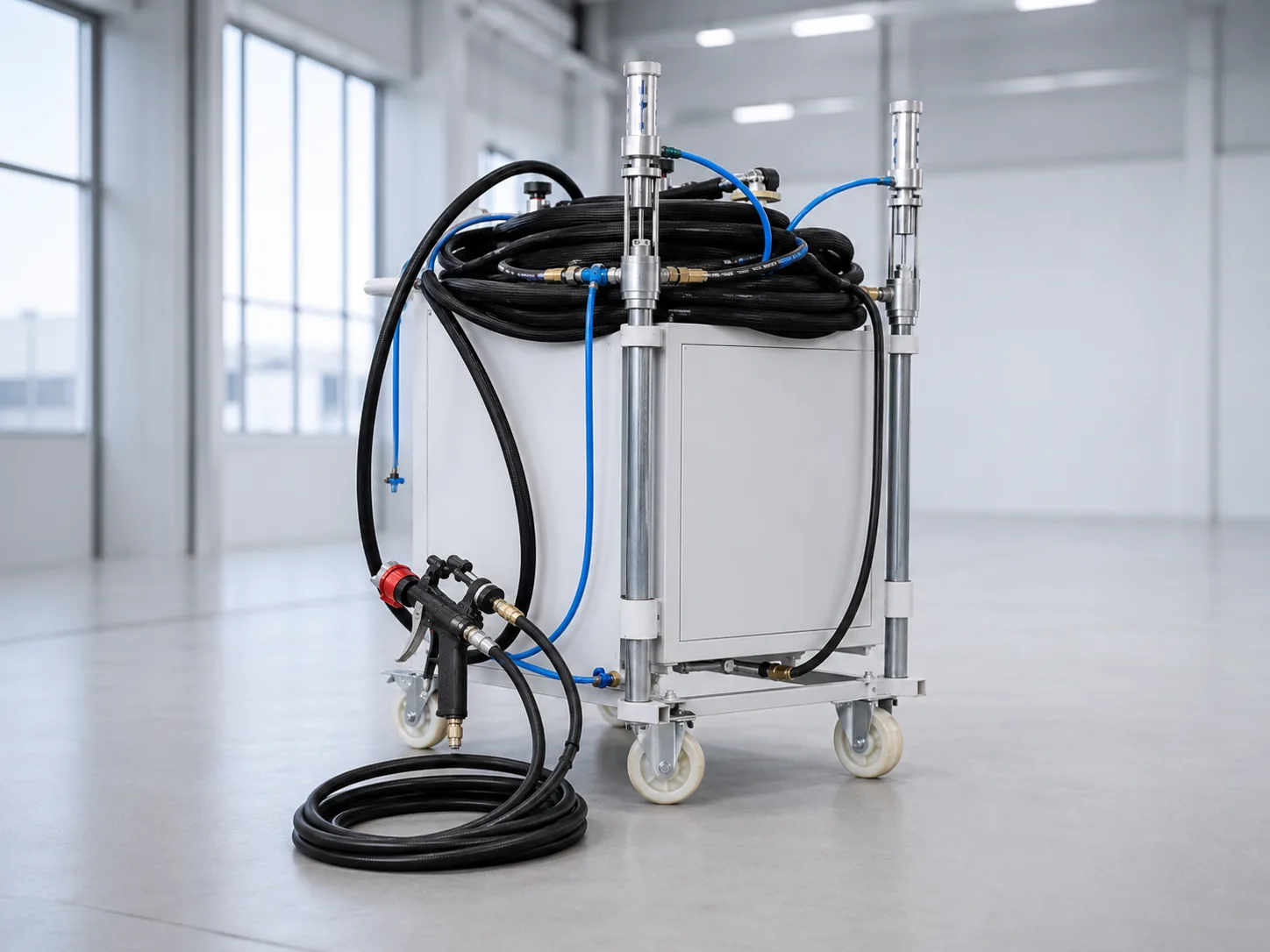

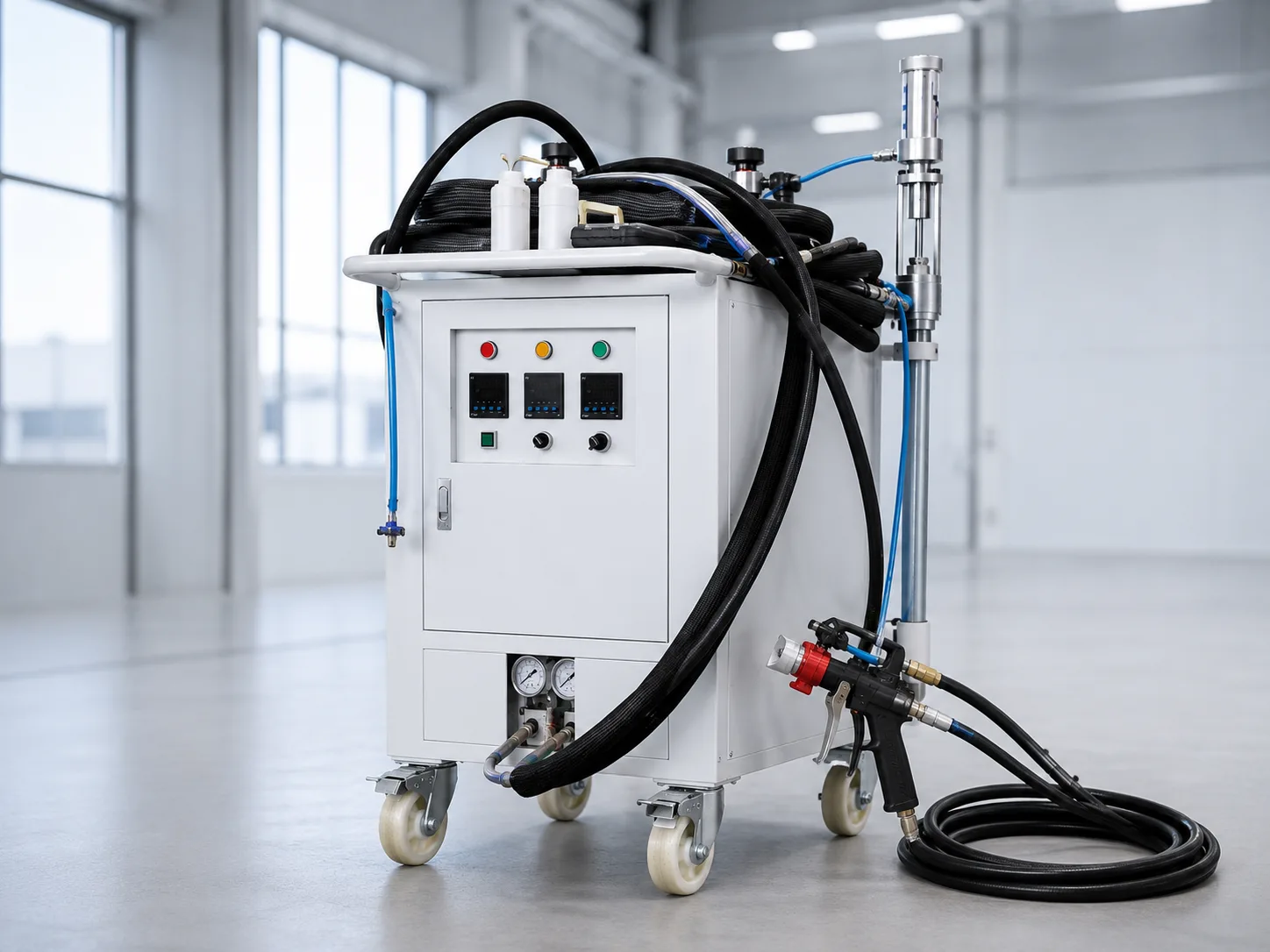

Polyurethane spray foam machines are designed for two-component PU foam spraying, foaming, filling, and insulation construction.
The equipment mixes component A and component B at a fixed ratio, heats the materials through the heating system, delivers them through heated hoses, and sprays them through a high-pressure spray gun to form rigid polyurethane foam on site.
WanFu polyurethane pipe shells can be supplied in two-piece, three-piece, or multi-segment structures according to pipe diameter and insulation thickness. The segmented structure helps improve installation accuracy, reduce gaps, and provide stable insulation around the pipe surface.
These machines are widely used in building energy-saving projects, cold storage construction, roof insulation, wall insulation, pipe insulation repair, tank insulation, and industrial thermal insulation applications.
Key Features
Entry-level PU Spray Foam Machine
Suitable for small insulation projects, repair work, pipe joint foaming, small contractors, and maintenance teams.
Contractor-grade PU Spray Foam Machine
Suitable for roof insulation, wall insulation, cold storage construction, medium-scale insulation projects, and professional insulation contractors.
Industrial PU Spray Foam Machine
Suitable for large-area spraying, tank insulation, industrial pipeline insulation, factory-level insulation projects, and large construction teams.
Reference Specification Range
Machine Specification Range
| Item | Recommended Website Range |
| Mixing Ratio | 1:1 |
| Material Type | Polyurethane A/B components |
| Output | Approx. 2-15 kg/min, depending on model |
| Max Working Pressure | Approx. 10-24 MPa, depending on model |
| Heating Power | Approx. 3-15 kW, depending on configuration |
| Hose Length | 15-90m optional |
| Voltage | 220V / 380V / 230V / 400V, 50/60Hz optional |

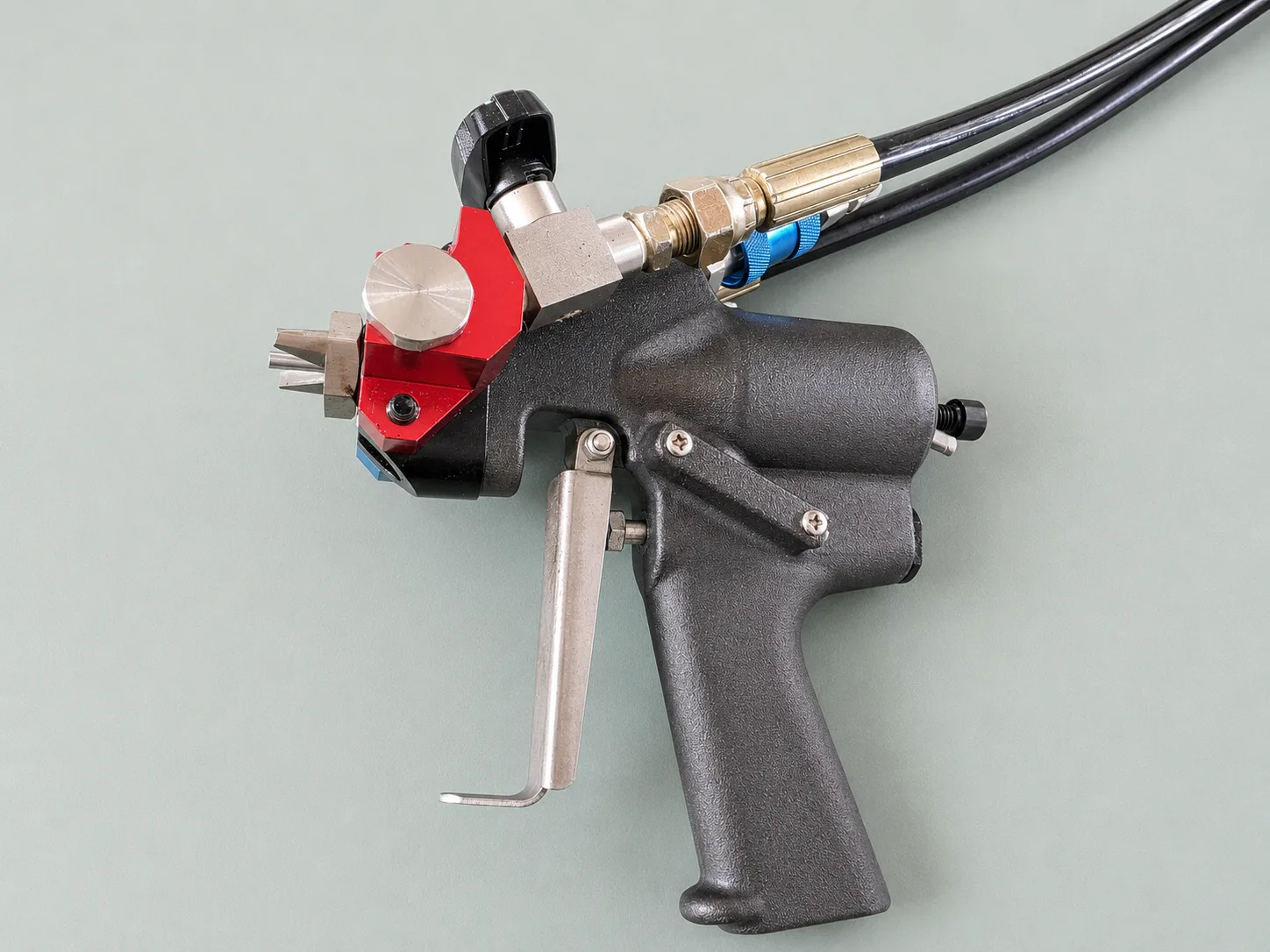

| Spray Gun | Air purge spray gun or mechanical purge spray gun |
| Application | Spraying, foaming, filling, insulation construction |
| Spare Parts | Nozzle, mixing chamber, seal kit, filter, hose, spray gun parts |
Core Selection Points
| 1.Output Matching Match kg/min capacity with wall, roof, tank, or pipeline repair project size. |
| 2.Voltage Confirmation Confirm 220V, 380V, 230V, or 400V according to your local power supply. |
| 3.Hose Length Choose 15-90m hose according to jobsite distance and construction workflow. |
| 4.Spare Parts Plan Prepare wear parts such as nozzles, mixing chambers, filters, hoses, and seal kits. |
Applications
CONFIGURATION & SUPPORT
Not Sure Which Product Fits Your Project?
Send us your pipe diameter, operating temperature, insulation thickness, density requirement, support type, and drawings. Our team will help recommend the right insulation product and quotation plan.
